Series Hybrid DVR

VOICE Y DATA FOLDER

General

  • Power Supply:   100~240 VAC, 6.3A, 50~60Hz

  • Consumption:   ≤ 35 W

  • Working Temperature:   -10 °C ~ +55 °C

  • Working Humidity:   10% ~ 90%

  • Chassis:   19-inch rack-mounted 2U chassis

  • Dimensions:   445 × 470 × 90 mm (W × D × H)

  • Weight:   ≤ 8kg (without hard disk or DVD-R/W)



Descargar
Datasheet of DS-9000HFI-ST(RT)

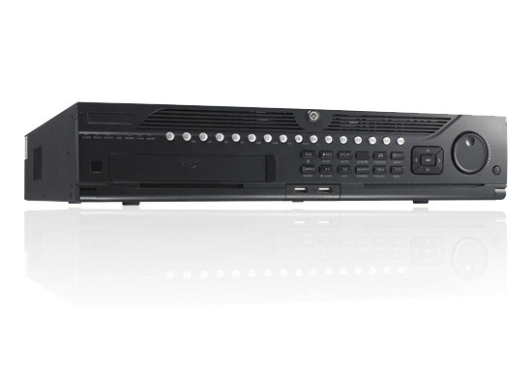

DS-9004/9008/9016HFI-ST
Embedded Hybrid DVR

Características principales
• H.264 video compression
• Third-party network cameras supported
• Up to 5 Megapixels resolution recording
• HDMI and VGA output at 1920×1080P resolution
• 8/16-ch synchronous playback
• HDD quota and group management
• Dual Gigabit network interfaces

Especificaciones

Video/Audio Input

  • Video Compression:   H.264

  • Analog Video Input:   4-ch

  • PAL/NTSC Adaptive:   Support

  • IP Video Input:   8-ch

  • Video Input Interface:   BNC (1.0 Vp-p, 75Ω)

  • Composite Video Input:   Up to 8-ch

  • (Analog video + IP video)

  • Audio Compression:   OggVorbis

  • Audio Input:   4-ch

  • Audio Input Interface:   RCA (2.0 Vp-p, 1 kΩ)

  • Two-way Audio:   1-ch RCA(2.0Vp-p, 1kΩ)


Video/Audio Output

  • VGA Output:   1-ch, resolution:

  • 1920×1080P/60Hz,1600×1200/60Hz,1280×1024/60Hz,

  • 1280×720/60Hz, 1024×768/60Hz

  • CVBS Output:   1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

  • HDMI Output:   1-ch, resolution: 1920 × 1080P / 60 Hz , 1920 × 1080P / 50 Hz, 1600 × 1200 / 60 Hz,

  • 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz

  • Recording resolution:   4CIF/2CIF/CIF/QCIF

  • Video Spot Output:   1-ch, BNC(1.0Vp-p, 75Ω)

  • Video Loop Output:   4-ch, BNC

  • Frame Rate:   25fps (P) / 30fps (N)

  • Video Bit Rate:   32 Kbps-8192 Kbps, or user defined (Max. 8192 Kbps)

  • Stream Type:   Video/Video&Audio

  • Audio Output:   2-ch, RCA (2.0 Vp-p, 1 kΩ)

  • Audio Bit Rate:   16kbps

  • Dual Stream:   Support

  • Playback Resolution:   5MP /3MP / 1080P / UXGA / 720P / 4CIF / VGA / DCIF / 2CIF / CIF / QCIF

  • Synchronous Playback:   8-ch


Hard Disk Driver

  • Interface Type:   8 SATA interfaces for 4 HDDs + 1 DVD-R/W (default), or 8HDDs

  • Capacity:   Up to 4TB capacity for each disk

  • e-SATA Interface:   1 eSATA interface

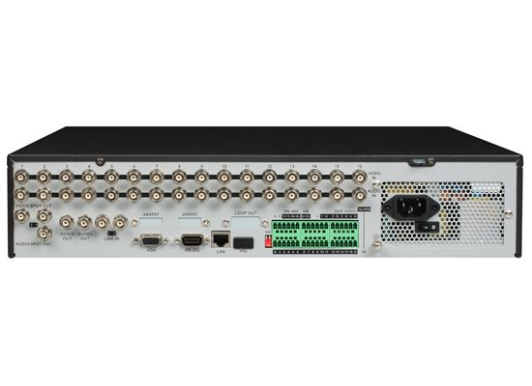

External Interface

  • Network Interface:   2 RJ45 10M / 100M / 1000M adaptive Ethernet interfaces

  • USB Interface:   2 USB 2.0 Interfaces

  • Serial Interface:   1 RJ45 RS-232 interface; 1 RS-485 interface; 1 RS-485 keyboard interface

  • Alarm Input:   4-ch

  • Alarm Output:   2-ch
