SECURITY CAMERA

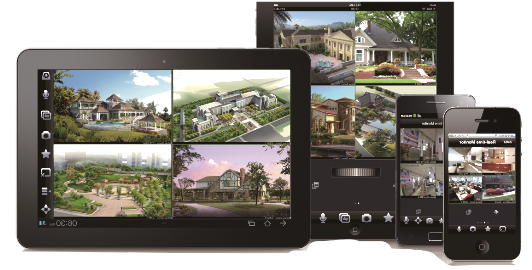

DMSS for ios/Android
> 1. Multi-Language: English, Spanish, Portuguese, Polish, French, German, Japanese, Dutch, Russian, Traditional Chinese, Simplified Chinese, Italian
> 2. Support Relay Out function
Relay Function supports remote control over alarms or home appliances, such as siren, air conditioner and etc.
> 3. Support MJPEG decoding
> 4. Add PlayBack/Image Choices with ALARM PUSH
Alarm Push with three different types enables you to acquire instant messages for what happened in your monitoring environment.
> 5. E-Map
Self-add cameras onto the imported E-map to easy get your target video & realize easy device management
> 6. Task Wheel to change Favorites Group
A simple tap to add “Favorite Group”; A little Slide to get your “Favorite Group”

DMSS for Blackberry/Symbian/Window Mobile/Windows Phone
> 1. Remote surveillance anytime and anywhere
> 2. Up to 4 channel live display
> 3. Remote control for PTZ cameras
> 4. Connection up to 4/8/16/32 channels
> 5. The connection information is saved automatically
> 6. Compatible with Dahua DVR, IP cameras and Video Servers.
For more details, please check with each model

No monthly monitoring fees.

Watch live, review recordings, set motion zones and receive alerts- with no additional monthly monitoring or video storage fees. Everything you need to keep an eye on your home is included in the purchase of your master system.*

Security Products

>Up to 4/8/16 cameras with 1080p realtime preview
>H.264 dual-stream video compression
>DVR5104C-V2/5108C/5116C: All channel 960H realtime recording
>HDMI/VGA/TV simultaneous video output
>4 channel synchronous realtime playback, GRID interface & smart search
>Support 1 SATA HDD up to 4TB, 2 USB2.0
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>DVR5104C-V2 support 1channel audio

Specifications
Model DH-DVR5104C-V2 DH-DVR5108C DH-DVR5116C
System
Main Processor Embedded processor
Operating System Embedded LINUX
Video
Input 4 channel, BNC 8 channel, BNC 16 channel, BNC
Standard NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
Audio
Input 1 channel, RCA N/A N/A
Output 1 channel, RCA N/A N/A
Two-way Talk Reuse audio input/output channel 1 N/A N/A
Display
Interface 1HDMI, 1 VGA, 1 TV
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4 1/4/8/9 1/4/8/9/16
Privacy Masking 4 rectangular zones (each camera)
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video Compression H.264
Resolution 960H/D1/4CIF(704×576/704×480)/2CIF(704×288/704×240)/CIF(352×288/352×240)/ QCIF(176×144/176×120)
Record Rate Main Stream: 960H/D1/HD1/2CFI/CIF(1~25/30fps)
Extra Stream CIF/QCIF(1~25/30ps)
Bit Rate 48~3072Kb/s
Record Mode Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection
Trigger Events Recording, Tour, Video Push, Email, FTP, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Playback & Backup
Sync Playback 1/4 1/4/9 1/4/9/16
Search Mode Time/Date, MD & Exact search (accurate to second)
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Network/Internal SATA burner
Network
Ethernet RJ-45 port (10/100M)
Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
Max. User Access 128 users
Smart Phone iPhone, iPad, Android, Windows Phone
Storage
Internal HDD 1 SATA port, up to 4TB
Auxiliary Interface
USB Interface 2 ports (1 Rear), USB2.0
General
Power Supply DC12V/2A
Power Consumption 10W(without HDD)
Working Environment -10°C ~+55°C / 10%~90%RH / 86~106kpa
Dimension(W×D×H) 205mm×205mm 270mm×205mm×40mm
Weight 0.5KG 0.75KG
