DVR

VOICE Y DATA FOLDER

Key Features

• H.264 video compression
• Special for HD-SDI cameras
• 720P real-time recording or 1080P non-real-time recording
• HDMI and VGA output at up to 1920 × 1080P resolution
• 4/8-ch synchronous playback
• HDD quota and group management

General

  • Power Supply:   12 VDC

  • Consumption:   ≤ 15 W

  • Working Temperature:   -10 °C ~ +55 °C

  • Working Humidity:   10% ~ 90%

  • Chassis:   Standalone 1U chassis

  • Dimensions:   315 × 230 × 45 mm (W × D × H)

  • Weight:   ≤ 2 kg (without hard disk or DVD-R/W)


Hard Disk Driver

  • Interface Type:   1 SATA Interface

  • Capacity:   Up to 4TB capacity for each disk

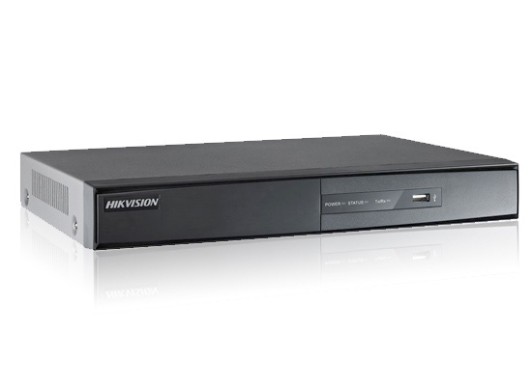

DS-7204/7208HFHI-SE
Economic HD-SDI DVR

Key Features
• H.264 video compression
• Special for HD-SDI cameras
• 720P real-time recording or 1080P non-real-time recording
• HDMI and VGA output at up to 1920 × 1080P resolution
• 4/8-ch synchronous playback
• HDD quota and group management

Video/Audio Input
Video Compression:   H.264
HD-SDI video input:   4-ch; HD-SDI interface; (800mVp-p, 75Ω)
Audio Compression:   G.711
Audio Input:   4-ch
Audio Input Interface:   RCA (2.0 Vp-p, 1 kΩ)

Video/Audio Output
VGA Output:   1-ch, resolution:
1920×1080P/60Hz,1280×1024/60Hz,1280×720/60Hz, 1024×768/60Hz
HDMI Output:   1-ch, resolution:
1920 × 1080P / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution:   1080P/720P/VGA/4CIF/CIF
Frame Rate:   12fps @ 1080P resolution, or real time @ 720P/VGA/4CIF/CIF
Video Bit Rate:   32 Kbps-16384 Kbps
Stream Type:   Video/Video&Audio
Two-way Audio:   1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output:   1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:   64kbps
Dual Stream:   Support
Synchronous Playback:   4-ch

General

  • Power Supply:   100 ~ 240VAC, 47 ~ 63HZ

  • Consumption:   ≤35W (without hard disks)

  • Working Temperature:   -10 oC ~+55 oC (14 oF ~ 131 oF)

  • Working Humidity:   10% ~ 90%

  • Chassis:   19-inch rack-mounted 1.5U chassis

  • Dimensions:   440 × 390 × 70 mm (17.3 × 15.3 × 2.7 inch)

  • Weight:   ≤8Kg (without hard disks)



Descargar
Datasheet of DS-7300HFHI-ST

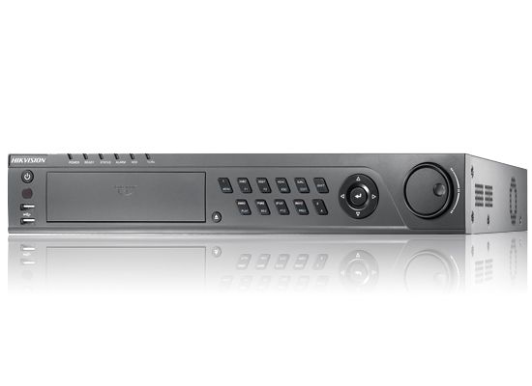

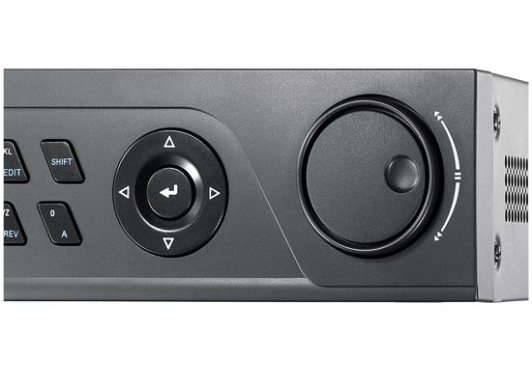

DS-7304/7308/7316HFHI-ST
HD-SDI DVR

• 4/8/16-ch HD-SDI video input
• H.264 & Dual-stream video compression
• 1080P real-time recording
• HDMI and VGA output at up to 1080P
• Gigabit network interfaces
• HDD quota and group management

Video/Audio Input

  • Video Compression:   H.264

  • HD-SDI video input:   4-ch; HD-SDI interface; (800mVp-p, 75Ω)

  • Supported HD-SDI Camera Types:   720P/25, 720P/30, 720P/50, 720P/60, 1080P/25, 1080P/30, 1080I/50, 1080I/60

  • Audio Compression:   G.711u

  • Audio Input:   4-ch

  • Audio Input Interface:   RCA (2.0 Vp-p, 1 kΩ)


Video/Audio Output

  • VGA Output:   1-ch, resolution:

  • 1920×1080P/60Hz,1280×1024/60Hz,1280×720/60Hz, 1024×768/60Hz

  • HDMI Output:   1-ch, resolution:

  • 1920 × 1080P / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz

  • Recording resolution:   1080P/720P/VGA/4CIF/CIF

  • Frame Rate:   Main stream: 1/16 fps ~ Real time frame rate

  • Sub-stream: 1/16 fps ~ Real time frame rate

  • Video Bit Rate:   32 Kbps-16384 Kbps

  • Stream Type:   Video/Video&Audio

  • Two-way Audio:   1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)

  • Audio Output:   2-ch, RCA (2.0 Vp-p, 1 kΩ)

  • Audio Bit Rate:   64kbps

  • Dual Stream:   Support

  • Synchronous Playback:   4-ch


Hard Disk Driver
Interface Type:   4 SATA Interfaces
Capacity:   Up to 4TB capacity for each disk

External Interface

  • Network Interface:   1 RJ45 10M/100M/1000M adaptive Ethernet Interface

  • USB Interface:   3 USB2.0 interfaces

  • Serial Interface:   1RS-485 interface, 1 RS-232 interface, 1 RS-485 keyboard interface

  • Alarm Input:   16-ch

  • Alarm Output:   4-ch





General

  • Power Supply:   100 ~ 240VAC, 47 ~ 63HZ

  • Consumption:   ≤35W (without hard disks)

  • Working Temperature:   -10 oC ~+55 oC (14 oF ~ 131 oF)

  • Working Humidity:   10% ~ 90%

  • Chassis:   19-inch rack-mounted 2U chassis

  • Dimensions:   445 × 470 × 90 mm (17.5 × 18.5 × 3.5 inch)

  • Weight:   ≤8Kg (without hard disks)


Descargar
 Datasheet of DS-8100HFHI-ST

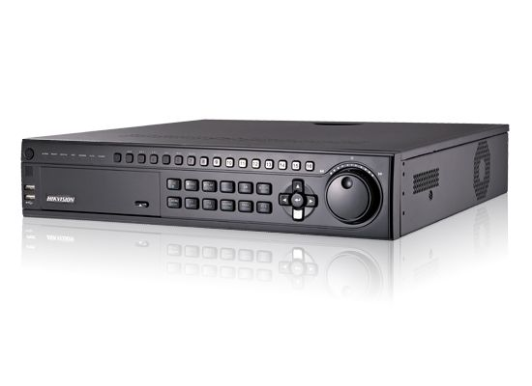

DS-8104/8108/8116HFHI-ST
HD-SDI DVR
• 4/8/16-ch HD-SDI video input
• H.264 & Dual-stream video compression
• 1080P real-time recording
• HDMI and VGA output at up to 1080P
• Gigabit network interfaces
• HDD quota and group management

Video/Audio Input

  • Video Compression:   H.264

  • HD-SDI video input:   4-ch; HD-SDI interface; (800mVp-p, 75Ω)

  • Supported HD-SDI Camera Types:   720P/25, 720P/30, 720P/50, 720P/60, 1080P/25, 1080P/30, 1080I/50, 1080I/60

  • Audio Compression:   G.711u

  • Audio Input:   4-ch

  • Audio Input Interface:   RCA (2.0 Vp-p, 1 kΩ)


Video/Audio Output

  • VGA Output:   1-ch, resolution:

  • 1920×1080P/60Hz,1280×1024/60Hz,1280×720/60Hz, 1024×768/60Hz

  • HDMI Output:   1-ch, resolution:

  • 1920 × 1080P / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz

  • Recording resolution:   1080P/720P/VGA/4CIF/CIF

  • Frame Rate:   Main stream: 1/16 fps ~ Real time frame rate

  • Sub-stream: 1/16 fps ~ Real time frame rate

  • Video Bit Rate:   32 Kbps-16384 Kbps

  • Stream Type:   Video/Video&Audio

  • Two-way Audio:   1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)

  • Audio Output:   2-ch, RCA (2.0 Vp-p, 1 kΩ)

  • Audio Bit Rate:   64kbps

  • Dual Stream:   Support

  • Synchronous Playback:   4-ch


Hard Disk Driver
Interface Type:   8 SATA Interfaces
Capacity:   Up to 4TB capacity for each disk

External Interface
Network Interface:   2 RJ45 10M / 100M / 1000M adaptive Ethernet interfaces
USB Interface:   3 USB2.0 interfaces
Serial Interface:   1RS-485 interface, 1 RS-232 interface, 1 RS-485 keyboard interface
Alarm Input:   16-ch
Alarm Output:   4-ch
