DS-2AE7168

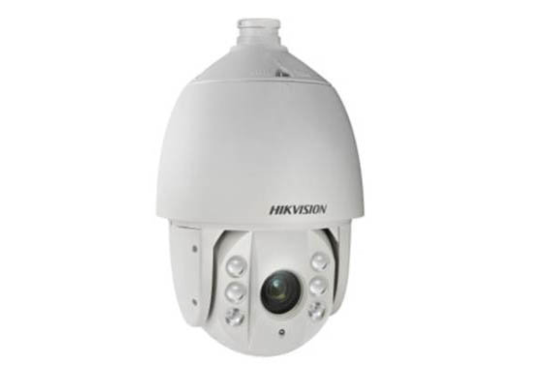

Analog IR High Speed Dome

• 1/4" Sony CCD
• 36x optical zoom
• 700TVL high resolution
• Up to 100m IR range
• 3D DNR, D WDR
• IP66 rating
• 3D intelligent positioning

Lens

• Focal Length:   3.3-119mm, 36X


• Zoom Speed:   Approx.6 s(Optical Wide-Tele)


• Angle of View:   57.1-1.7 degree(Wide-Tele)


• Minimum Working Distance:   10-1000mm (Wide-Tele)


• Aperture Range:   F1.4-F3.7


Infrared

• IR Range:   100m


• IR irradiation angle:   Adjustable by zoom


Specification

Camera

• Image Sensor:   1/4" SONY CCD


• Effective Pixels:   PAL:976(H)×582(V)


• NTSC:976(H)×494(V)


• Horizontal Resolution:   Color: 700 TVL


• B/W: 750 TVL


• Signal System:   PAL/NTSC


• Min.illumination:   0.02Lux/(F1.6, AGC ON), 0.0008Lux /(F1.6, AGC ON, sensitivity×256) (color)


• 0.002Lux/(F1.6, AGC ON), 0.00008Lux /(F1.6, AGC ON, sensitivity×256)(B/W)


• 0 Lux with IR


• White Balance:   Auto / Manual / ATW / Indoor / Outdoor


• AGC:   Auto/Manual


• S/N Ratio:   ≥ 50dB


• DNR:   3D DNR


• WDR:   128x (on / off / auto)


• Shutter time:   PAL: 1-1/10,000s


• NTSC: 1-1/10,000s


• Day&Night:   ICR


• Digital Zoom:   16x


• Privacy Masking:   8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen


• Focus Mode:   Auto / Semi-automatic / Manual


Pan & Tilt

• Pan Range:   360° endless


• Pan Speed:   Pan Manual Speed: 0.1°-160°/s,


• Pan Preset Speed: 240°/s


• Tilt Range:   -15°-90° (Auto Flip )


• Tilt Speed:   Tilt Manual Speed: 0.1°-120°/s,


• Tilt Preset Speed: 200°/s


• Proportional Zoom:   Rotation speed can be adjusted automatically according to zoom multiples


• Number of Preset:   256


• Patrol:   8 patrols, up to 32 presets per patrol


• Pattern:   4 patterns, with the total recording time not less than 10 minutes


• Power-off Memory:   Support


• Park Action:   Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan


• PTZ Position Display:   ON/OFF


• Compass:   Support , the north can be set


• Scheduled Task:   Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan


• RS-485 communication diagnosis:   Including failure information, e.g., wrong address, baud rate errors, et., displayed on the video screen in text


Input & Output

• Monitor Output:   1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC


Datasheet of DS-2AE7168

User manual of DS-2AE7168

DS-2AF5268 series

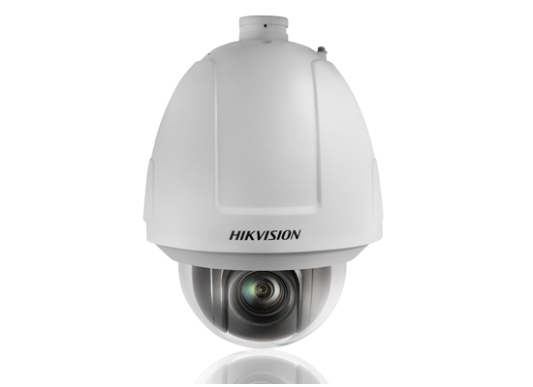

High Resolution Smart Speed Dome

• 1/4" Interline Transfer CCD
• Smart tracking
• 36x optical zoom
• 700TVL high resolution
• 3D DNR
• IP66 rating

Especificaciones
Camera
Image Sensor:   1/4" Interline Transfer CCD
Effective Pixels:   PAL:976(H)×582(V)
NTSC:976(H)×494(V)
Horizontal Resolution:   Color: 700 TVL
B/W: 750 TVL
Signal System:   PAL/NTSC
Min.illumination:   Color: 0.02Lux/(F1.6, AGC ON), 0.0008Lux /(F1.6, AGC ON, IRE×256)
B/W: 0.002Lux/(F1.6, AGC ON), 0.00008Lux /(F1.6, AGC ON,IRE×256)
White Balance:   Auto / Manual / ATW / Indoor / Outdoor
AGC:   Auto/Manual
S/N Ratio:   ≥ 50dB
DNR:   3D DNR
BLC:   ON/OFF
Shutter time:   PAL: 1/3 ~ 1/10,000s, NTSC: 1/4 ~ 1/10,000s
Day&Night:   ICR
Digital Zoom:   16x
Privacy Masking:   8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen
Focus Mode:   Auto / Semi-automatic / Manual

Datasheet of DS-2AF5268 series
User manual of DS-2AF5268 series

Lens
Focal Length:   3.3-119mm, 36X
Zoom Speed:   Approx.4.4s(Optical Wide-Tele)
Angle of View:   57.1°-1.7°(Wide-Tele)
Minimum Working Distance:   10-1500mm (Wide-Tele)
Aperture Range:   F1.4 – F4.2

Pan & Tilt
Pan Range:   360° endless
Pan Speed:   Pan Manual Speed: 0.1° -300°/s,
Pan Preset Speed: 540°/s
Tilt Range:   -5°~185° (Auto Mirror)
Tilt Speed:   Tilt Manual Speed: 0.1°-240°/s,
Tilt Preset Speed: 400°/s
Proportional Zoom:   Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:   256
Patrol:   8 patrols, up to 32 presets per patrol
Pattern:   4 patterns, with the total recording time not less than 10 minutes
Power-off Memory:   Support
Park Action:   Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
PTZ Position Display:   ON/OFF
Freeze Frame:   Support
Password Protection:   Support
Zone Scanning/Display:   Scanning within programmed zone, display zone title
Camera Title:   Programmable title display
Compass:   Support , the north can be set
Scheduled Task:   Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
RS-485 communication diagnosis:   Including failure information, e.g., wrong address, baud rate errors, et., displayed on the video screen in text
Manchester code communication diagnosis:   Including failure information, e.g., wrong address, baud rate errors, et., displayed on the video screen in text
Smart-tracking:   Support

Alarm
Alarm Input:   2 inputs(7 inputs optional)
Alarm Output:   2 relay outputs, alarm response actions option

Input & Output
Monitor Output:   1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC

General
Menu Language:   English / Chinese
RS-485 Protocols:   HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power Supply:   24V AC
Power Consumption:   Outdoor dome: Max. 40W (Heater On), Max. 20W(Heater Off)
Indoor/In-ceiling dome: Max. 20W
Working Temperature /Humidity:   -30 ℃-65℃(-22℉-149℉)(outdoor dome) / -10℃-50℃(14℉-122℉)(indoor dome )
90% or less
Protection Level:   IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
Mounting:   Various mounting modes option
Dimensions:   Φ220×325.5mm (Φ8.66”×12.81”)(Outdoor)
Φ183.4×243mm(Φ7.22”×9.56”) (Indoor)
Φ245×236mm(Φ9.65”×9.29”) (In-ceiling)
Weight(approx.):   5Kg (11.02Ibs)
Mount Option:   Long-arm wall mount: DS-1601ZJ; Corner mount: DS-1633ZJ; Pole Mount: DS-1622ZJ; Power box mount:DS-1634ZJ

DS-2AE5168-A

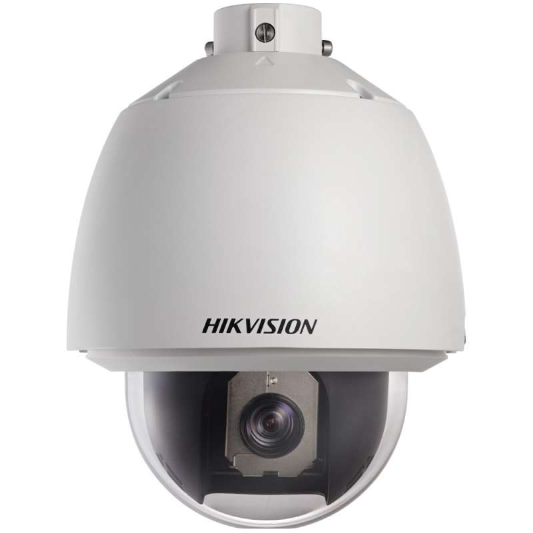

Analog High Speed Dome

• 1/4" Sony CCD
• 36x optical zoom
• 128x wide dynamic range
• 700TVL high resolution
• True day / night
• 3D digital noise reduction
• IP66 rating

Camera
Image Sensor:   1/4" SONY CCD
Effective Pixels:   PAL:976(H)×582(V)
NTSC:976(H)×494(V)
Horizontal Resolution:   Color: 700 TVL
B/W: 750 TVL
Signal System:   PAL/NTSC
Min.illumination:   0.02Lux/(F1.6, AGC ON), 0.0008Lux /(F1.6, AGC ON, sensitivity×256) (color)
0.002Lux/(F1.6, AGC ON), 0.00008Lux /(F1.6, AGC ON, sensitivity×256)(B/W)
White Balance:   Auto / Manual / ATW / Indoor / Outdoor
AGC:   Auto/Manual
S/N Ratio:   ≥ 50dB
DNR:   3D DNR
WDR:   128x (on / off / auto)
Shutter time:   PAL: 1-1/10,000s
NTSC: 1-1/10,000s
Day&Night:   ICR
Digital Zoom:   16x
Privacy Masking:   8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen
Focus Mode:   Auto / Semi-automatic / Manual

Lens
Focal Length:   3.3-119mm, 36X
Zoom Speed:   Approx.6 s(Optical Wide-Tele)
Angle of View:   57.1-1.7 degree(Wide-Tele)
Minimum Working Distance:   10-1000mm (Wide-Tele)
Aperture Range:   F1.4-F3.7

Pan & Tilt
Pan Range:   360° endless
Pan Speed:   Pan Manual Speed: 0.1°-250°/s,
Pan Preset Speed: 300°/s
Tilt Range:   -5°~90° (Auto Flip )
Tilt Speed:   Tilt Manual Speed: 0.1°-150°/s,
Tilt Preset Speed: 200°/s
Proportional Zoom:   Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:   256
Patrol:   8 patrols, up to 32 presets per patrol
Pattern:   4 patterns, with the total recording time not less than 10 minutes
Power-off Memory:   Support
Park Action:   Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
PTZ Position Display:   ON/OFF
Compass:   Support , the north can be set
Scheduled Task:   Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan

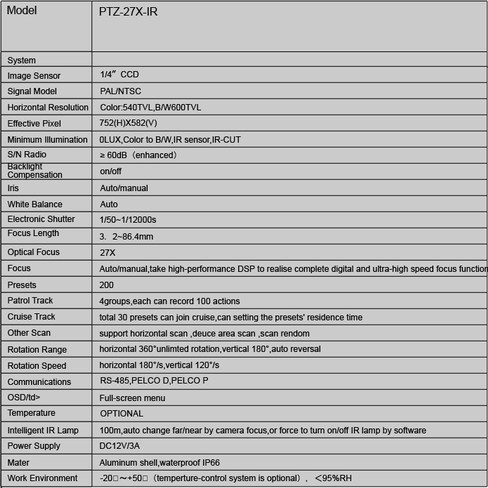

PTZ-27X-IR

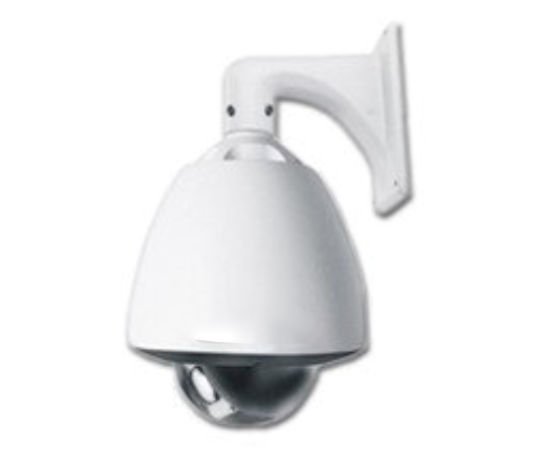

Analog IR High Speed Dome

• 7 inch IR intelligent high speed dome camera


• 27x zoom camera with auto iris, Color to B/W, IR- cut,Realize infrared lamp control and zoom camera filter synchronous switching, reach to perfect IR night effect.


• aluminum shell design, good heat dissipation effect.


• use high quality components, excellent camera dynamo, long life conductive slip ring, steady performance, high reliability.


• adopted domestic the most advanced "zoom and optics sync" way control IR lamp, effectively solve "electric torch"domino offect,orignal creation intelligent control IR lamp on and off, utilize IR light source in reason.


• special designed camera, IR lamp sub-depot separate system, no sphere case glisten, fogging malady.


• constant voltage constant current circuilt design, ensure IR lamp work in long time, long life, IR lamp life lasting to above 20000 hours.


• Adopt import infrared lamp of Taiwan. Effective distance 100M.


• optional temperature control system, adjust high-low temperature working.


• Scientific structure, it's beautiful and stable.


• OSD chinese/english menu display function for dome camera. It's more convenient for user to quickly setting all of the parameters and function operation.


• triple lightning protection technology, effectively raising the speed dome mine and anti-jamming capability
