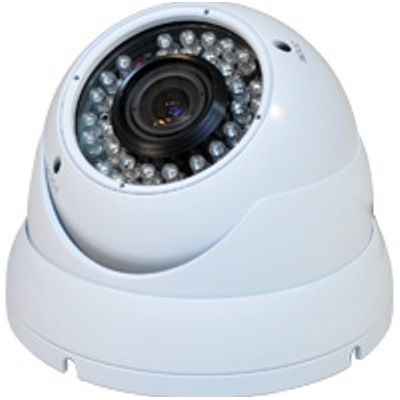

KD637BW-
• 1/3" CMOS 800TVL,
Metal Dome Camara, Lens 2.8mm-
System: NTSC, Power: DC12V/ 400mA,
Waterproof & VandalProof, Day & Night.(532)
Built-
Special Case Style:3 Axis Cable Built-
Automatic backlight compensatory function
Automatic tracking white balance
IR LED: 5X21PCS IR LED working distance: is between 30 meters (100 ft)

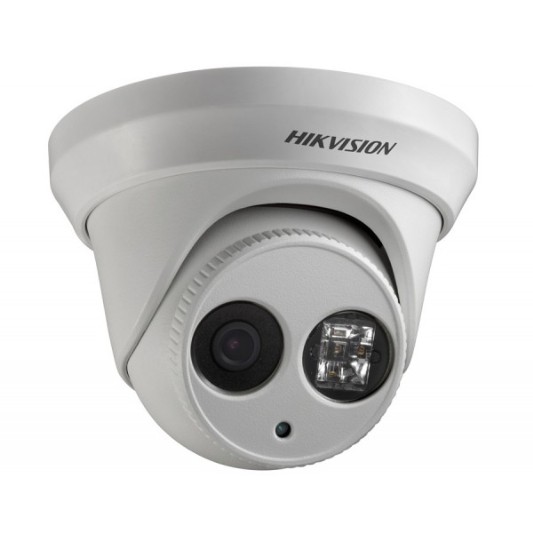

DS-
• 1/3" Sony CCD
• High resolution
• EXIR 40m
• True day / night
• IP66 rating
• Smart IR
Especificaciones
Image Sensor: 1/3'' SONY CCD
Signal System: PAL/NTSC
Effective Pixels: PAL: 976 (H) × 582 (V)
NTSC: 976 (H) × 494 (V)
Min. Illumination: 0.001 Lux @ (F1.2, AGC ON), 0 Lux with IR
0.002 Lux @ (F1.8, AGC ON), 0 Lux with IR
Shutter Time: 1/50(1/60)s to 1/100,000s
Lens: 3.6 mm @ F1.8 (2.8mm,6mm,8mm,12mm,16mm optional)
Angle of view: 70°(3.6mm)
Lens Mount: M12
Adjustment Range: Pan: 0 -
Day& Night: Electronic
Horizontal Resolution: 700 TVL
Synchronization: Internal Synchronization
Video Output: 1Vp-
S/N Ratio: More than 62 dB
BLC: On

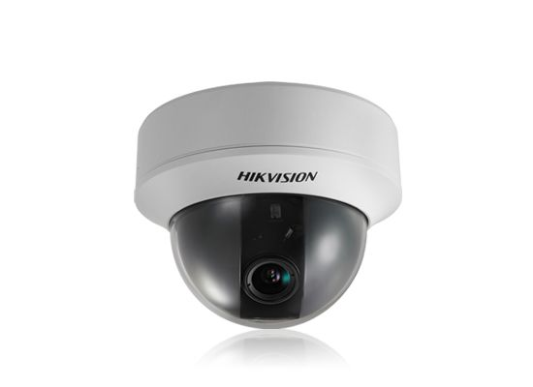

DS-
• 1/3" Sony CCD
• High resolution
• Vandal proof
• IP66 rating
• True day / night
• Smart IR
• Digital wide dynamic range
• Support 2.8-
Image Sensor: 1/3'' SONY CCD
Signal System: PAL/NTSC
Effective Pixels: PAL: 976 (H) × 582 (V)
NTSC: 976 (H) × 494 (V)
Min. Illumination: 0.001Lux @ (F1.2,AGC ON)
Shutter Time: 1/50(1/60)s to 1/100,000s
Lens: 2.8 -
Angle of view: 80° -
Lens Mount: φ14
Auto Iris: DC Drive
Adjustment Range: Pan: 0 -
Day& Night: IR cut filter with auto switch
Horizontal Resolution: 600TVL
Wide Dynamic Range: Digital
Synchronization: Internal/Power synchronization
Video Output: 1Vp-
Test Monitor OUT [1Vp-
S/N Ratio: More than 62 dB

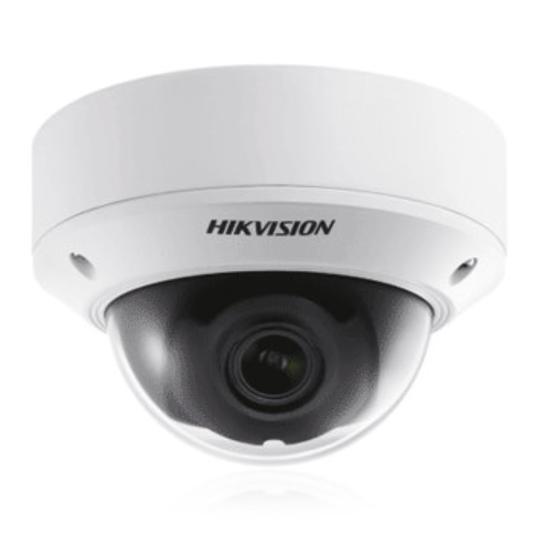

DS-
• 1/3" Sony CCD
• 800TVL high resolution
• Vandal proof
• IP66 rating
• Day / night auto switch
• Digital wide dynamic range
• Support 2.8-
Image Sensor: 1/3'' SONY CCD
Signal System: PAL/NTSC
Effective Pixels: PAL: 976 (H) × 582 (V)
NTSC: 976 (H) × 494 (V)
Min. Illumination: 0.001Lux @ (F1.2,AGC ON)
Shutter Time: 1/50(1/60)s to 1/100,000s
Lens: 2.8 -
Angle of view: 80° -
Lens Mount: φ14
Auto Iris: DC Drive
Adjustment Range: Pan: 0 -
Day& Night: Electronic
Synchronization: Internal Synchronization
Video Output: 1Vp-
Test Monitor OUT [1Vp-
S/N Ratio: More than 62 dB
DS-
720TVL Vari-
1/3'' PICADIS
1.3 Megapixel sensor
Vari-
720TVL high resolution
IP66 rating
True day / night
Image Sensor: 1/3'' PICADIS
Signal System: PAL/NTSC
Effective Pixels: 1280 (H) × 960 (V)
Min. Illumination: 0.1Lux @ (F1.2,AGC ON),0 Lux with IR
0.14Lux @ (F1.4,AGC ON),0 Lux with IR
Shutter Time: 1/25(1/30) s to 1/25,000(1/30,000) s
Lens: 2.8-
Angle of view: 80° -
Lens Mount: φ14
Adjustment Range: Pan: 0 -
Day& Night: IR cut filter with auto switch
Horizontal Resolution: 720TVL
Synchronization: Internal Synchronization
Video Output: 1Vp-
S/N Ratio: More than 62 dB
Datasheet of DS-
User manual of DS-

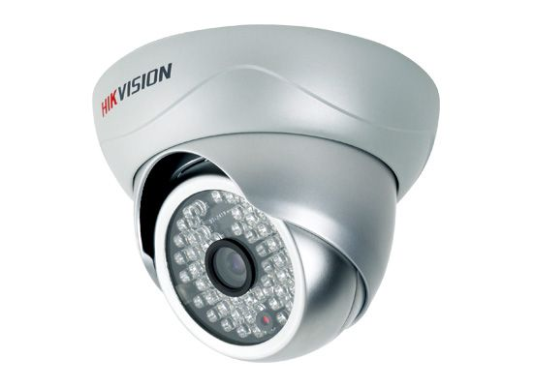

DS-
Weather-
1/3" Sony CCD
TVL high resolution
Up to 40m IR range
Super low illumination
Day / night auto switch
IP66 rating
Image Sensor: 1/3" SONY EXView HAD CCD II
Signal System: PAL
Effective Pixels: 976 (H) × 582 (V)
Min. Illumination: 0.001 lux@F1.2, AGC on, 0 lux with IR
0.002 lux@F1.8, AGC on, 0 lux with IR
Shutter Time: 1/50s to 1/100,000s
Lens: 6mm @F1.8 (3.6mm, 2.8mm optional)
Angle of view: 47° (6mm)
Lens Mount: M12
Adjustment Range: Pan: 0 ~ 355°; Tilt: 0 ~ 75°
Day& Night: Electronic
Horizontal Resolution: 650TVL
Synchronization: Internal Synchronization
Video Output: 1Vp-
S/N Ratio: More than 62 dB
BLC: On
Datasheet of DS-
User manual of DS-
General
Operating Conditions: -
Humidity 90% or less (non-
Power Supply: 12 V DC ± 10%, 24 V AC ± 10%
Power Consumption: Max. 4 W
(Max. 4.5 W with IR cut filter on)
Dimension: Φ 136 × 101 mm (Φ 5.35” × 3. 98”)
Weight: 800 g (1.76 lbs)

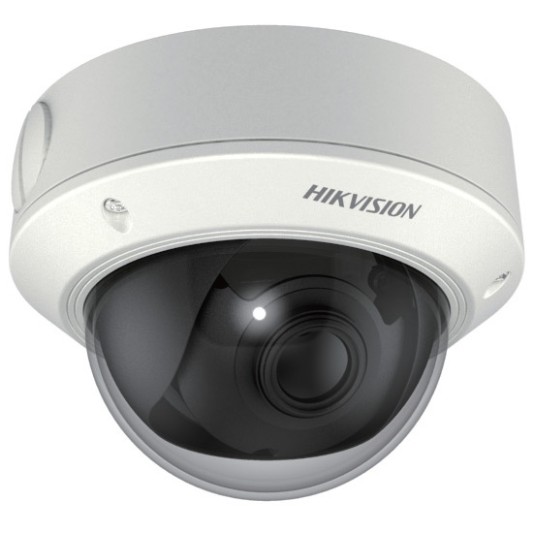

DS-
700TVL Vari-
1/3” Sony CCD
700 TVL high resolution
Super low illumination
Vari-
True day / night
OSD menu
3-
Camera
Image Sensor: 1/3'' SONY CCD
Signal System: PAL/NTSC
Effective Pixels: PAL: 976 (H) × 582 (V)
NTSC: 976 (H) × 494 (V)
Min. Illumination: Color: 0.001 Lux @ (F1.2, AGC ON)
B/W: 0.0001 Lux @ (F1.2, AGC ON)
Shutter Time: 1/50(1/60)s to 1/100,000s
Lens: 2.8 -
Angle of view: 80° -
Lens Mount: φ14
Auto Iris: DC Drive
Adjustment Range: Pan: 0 -
Day& Night: IR cut filter with auto switch
Synchronization: Internal/Power synchronization
Video Output: 1Vp-
Test Monitor OUT [1Vp-
S/N Ratio: More than 62 dB
Menu
Camera ID: On / Off (52 letters, position adjustable)
Auto Gain: Low/Middle/High/Off
D/N Mode: Auto/Day/Night
Auto White Balance: ATW/Push/User1/User2/Anti CR/Manual/Push lock
Private Mask: On/Off,Maximum 8 Zones
Motion Detection: ON/Off
BLC: BLC/HLC/Off
Eclipse: On / off
Language: English/Chinese/Japanese/German/French/Russian/Portuguese/Spanish
Function: ATR, HLC, DNR, Sharpness, Brightness, Contrast, Hue, Gain, Mirror, Defect Pixel Correction
KD637DW/BG -
Especificaciones
Built-
Lens: 2.8-
700TVL / 1000 TVL
Special Case Style:3 Axis Cable Built-
Automatic backlight compensatory function
Automatic tracking white balance
IR LED: working distance: is between 30 meters (100 ft)

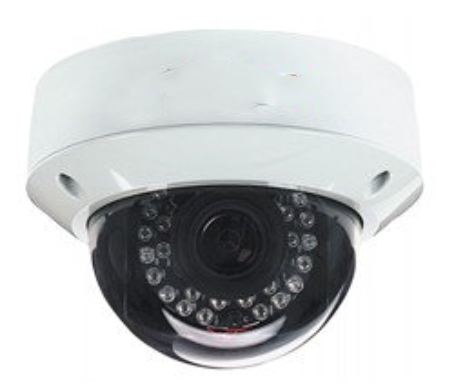

KD645DW -
Especificaciones
Built-
Lens: 2.8-
700/ 800/ 1000 TVL
Special Case Style:3 Axis Cable Built-
Automatic backlight compensatory function
Automatic tracking white balance
IR LED: ¢5X21PCS IR LED working distance: is between 30 meters (100 ft)

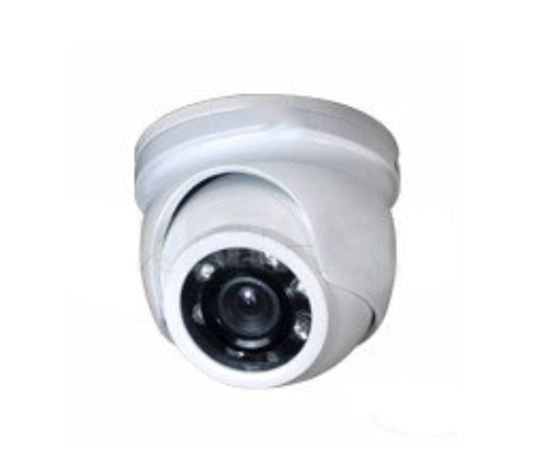

KD690BW -
700 TVL IR Dome Camera,MINI IR Dome camera has been presented above, want more similar products, please click IR Dome Camera. Camera,MINI IR Dome camera is good in quality and competitive in price. We manufacture IR Dome Camera,MINI IR Dome camera and supply OEM, ODM service according to your requirement. If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
Especificaciones
Day & Night 2.5” Sony CCD IR Metal Dome Color Camera
700 TVL.
Mini Vandal/watterproof Dome Camera.
4mm/ 3.6mm Fixed Lens.
Color White.
Working distance: is between 10 meters
Network
Network Storage: NAS
Alarm Trigger: Intrusion detection, Defocus detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour(SIP optional)
Security: User Authentication, Watermark, IP address filtering, anonymous access
System Compatibility: ONVIF, PSIA, CGI
Interface
Audio Input: 1-
Audio Output: 1-
Communication Interface: 1 RJ45 10M / 100M ethernet interface and 1 RS-
Alarm Input: 1
Alarm Output: 1
Video Output: 1Vp-
On-
General
Operating Conditions: -
Humidity 95% or less (non-
Power Supply: 12 VDC ± 10%, PoE (802.3af)
Power Consumption: Max. 6 W
Max. 9 W(IR: 2W, motorized VF lens: 1W)
Impact Protection: IEC60068-
IR Range: Approx. 10 to 30 meters
Dimensions: Φ 140 × 121.8 mm (Φ 5.51” × 4.80”)
Weight: 1400 g (3.09 lbs)

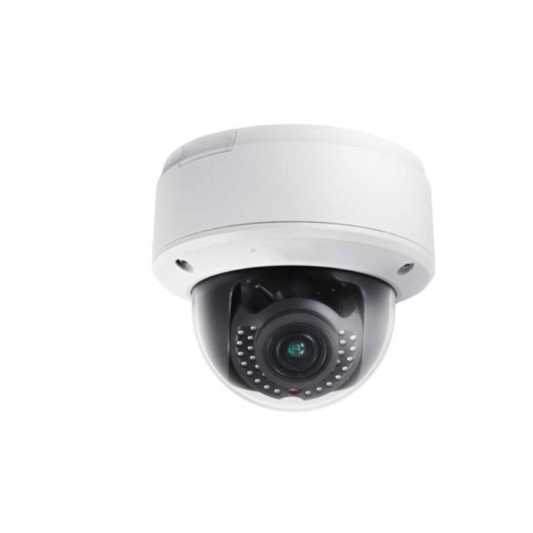

DS-
1.3MP Low-
• 1/3’’ progressive scan CMOS
• Up to 1280 × 1024 resolution
• HD 720P video(up to 60fps)
• Smart Codec
• Smart IR
• Smart Focus: Motorized VF lens(-
• Smart VQD
• Smart Face Detection
• Smart Audio Detection
• Intrusion Detection
• 3D DNR, DWDR
• Defog, EIS, BLC, HLC
Camera
Image Sensor: 1/3" Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 lux with IR
0.014 Lux @ (F1.4, AGC ON), 0 lux with IR
Shutter time: 1 s to 1/100,000 s
Lens: 2.8-
-
Lens Mount: φ14
Auto Iris: DC drive
Adjustment Range: Pan:0° -
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: Digital WDR
Digital noise reduction: 3D DNR
Focus: Motorized VF lens(-
Compression Standard
Video Compression: H.264 / MPEG4 / MJPEG
Bit Rate: 32 Kbps ~ 16 Mbps
Audio Compression: G.711/G.726/MP2L2
Triple Streams: Yes
Max. Image Resolution: 1280 × 1024
Frame Rate: 50Hz: 25fps (1280 × 1024),25fps (1280 × 960), 50fps (1280 × 720)
60Hz: 30fps (1280 × 1024),30fps (1280 × 960), 60fps (1280 × 720)
Third Stream: Independent with Main Stream and Sub Stream, up to
50Hz: 25fps(1280 × 1024)
60Hz: 30fps (1280 × 1024)
Image Settings: Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC: Support
HLC: Support
Smart Defog: Support
EIS: Support
ROI: Yes, up to 4 configurable areas
Picture Overlay: 128 × 128, BMP 24bit, zone configurable
