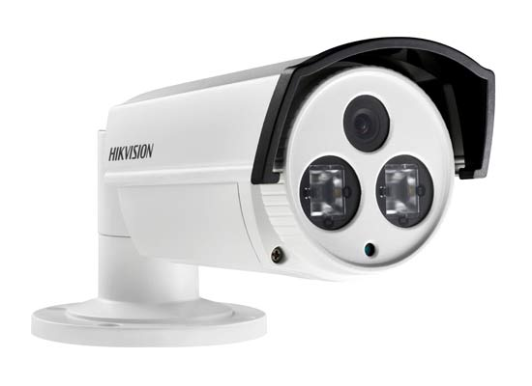

DS-
1/3'' CCD
700TVL high resolution
EXIR 80m
Smart IR
IP66 rating
Day / night auto switch
Camera
Image Sensor: 1/3'' CCD
Signal System: PAL/NTSC
Effective Pixels: PAL: 976 (H) × 582 (V)
NTSC: 976 (H) × 494 (V)
Min. Illumination: 0.001 Lux @ (F1.2, AGC ON), 0 Lux with IR
0.002 Lux @ (F1.8, AGC ON), 0 Lux with IR
Shutter Time: 1/50(1/60)s to 1/100,000s
Lens: 3.6 mm @ F1.8 (6mm,8mm,12mm,16mm optional)
Angle of view: 70°(3.6mm)
Lens Mount: M12
Day& Night: Electronic
Horizontal Resolution: 700 TVL
Synchronization: Internal Synchronization
Video Output: 1Vp-
S/N Ratio: More than 62 dB
BLC: On
DS-
• 1/3'' PICADIS
• 1.3 Megapixel sensor
• Vari-
• 720TVL high resolution
• IP66 rating
• True day / night
Operating Conditions: -
Humidity 90% or less (non-
Power Supply: 12 V DC±10%
Power Consumption: Max. 4 W(Max. 5 W with IR cut filter on)
Weather Proof: IP66
IR Range: Approx 30 to 40 meters
Dimension: 105 × 86.9 × 267.2mm(φ 4.13” x 3.42” x 10.52”)
Weight: 1350g (2.97 lbs)
Image Sensor: 1/3'' PICADIS
Signal System: PAL/NTSC
Effective Pixels: 1280 (H) × 960 (V)
Min. Illumination: 0.1Lux @ (F1.2,AGC ON),0 Lux with IR
0.14Lux @ (F1.4,AGC ON),0 Lux with IR
Shutter Time: 1/25(1/30) s to 1/25,000(1/30,000) s
Lens: 2.8-
Angle of view: 80° -
Lens Mount: φ14
Adjustment Range: Pan: 0 -
Day& Night: IR cut filter with auto switch
Horizontal Resolution: 720TVL
Synchronization: Internal Synchronization
Video Output: 1Vp-
S/N Ratio: More than 62 dB
Datasheet of DS-
User manual of DS-

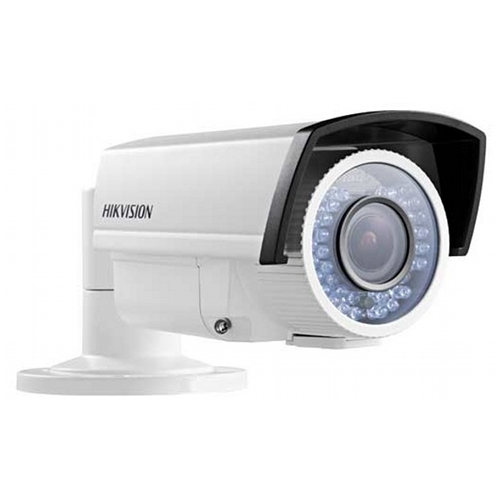

DS-
700TVL Vari-
1/3" DIS
700TVL high resolution
Vari-
Up to 40m IR range
IP66 rating
True day / night
General
Operating Conditions: -
Humidity 90% or less (non-
Power Supply: 12 V DC±10%
Power Consumption: Max. 4 W(Max. 5 W with IR cut filter on)
Weather Proof: IP66
IR Range: Approx 30 to 40 meters
Dimension: 105 × 86.9 × 267.2mm(φ 4.13” x 3.42” x 10.52”)
Weight: 1350g (2.97 lbs)
Image Sensor: 1/3” DIS
Signal System: PAL/NTSC
Effective Pixels: 976(H)×496(V)
Min. Illumination: 0.1Lux @ (F1.2,AGC ON),0 Lux with IR
0.14Lux @ (F1.4,AGC ON),0 Lux with IR
Shutter Time: 1/50(1/60)s to 1/100,000s
Lens: 2.8-
Angle of view: 80° -
Lens Mount: φ14
Adjustment Range: Pan: 0 -
Day& Night: IR cut filter with auto switch
Horizontal Resolution: 700 TVL
Synchronization: Internal Synchronization
Video Output: 1Vp-
S/N Ratio: More than 62 dB
BLC: On
Datasheet of DS-
User manual of DS-

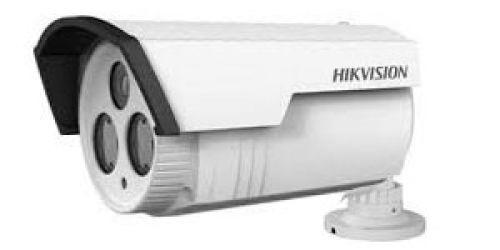

DS-
720TVL PICADIS and EXIR Bullet Camera
• 1/3'' PICADIS
• 1.3 Megapixel sensor
• 720TVL high resolution
• EXIR 80m
• IP66 rating
• Smart IR
General
Operating Conditions: -
Humidity 90% or less (non-
Power Supply: 12 V DC±10%
Power Consumption: Max.5 W
Weather Proof: IP66
IR Range: Approx 50 to 80 meters
Dimension: 99.9×87.8×157.3 mm (3.93” × 3.46” × 6.20”)
Weight: 700 g (1.544 lbs)
Image Sensor: 1/3'' PICADIS
Signal System: PAL/NTSC
Effective Pixels: 1280 (H) × 960 (V)
Min. Illumination: 0.1Lux @ (F1.2,AGC ON),0 Lux with IR
0.3Lux @ (F2.3,AGC ON),0 Lux with IR
Shutter Time: 1/25(1/30) s to 1/25,000(1/30,000) s
Lens: 12mm @ F1.8 (3.6mm,6mm,8mm,16mm optional)
Angle of view: 22.72° (12mm)
Lens Mount: M12
Day& Night: IR cut filter with auto switch
Horizontal Resolution: 720TVL
Synchronization: Internal Synchronization
Video Output: 1Vp-
S/N Ratio: More than 62 dB
Datasheet of DS-
User manual of DS-

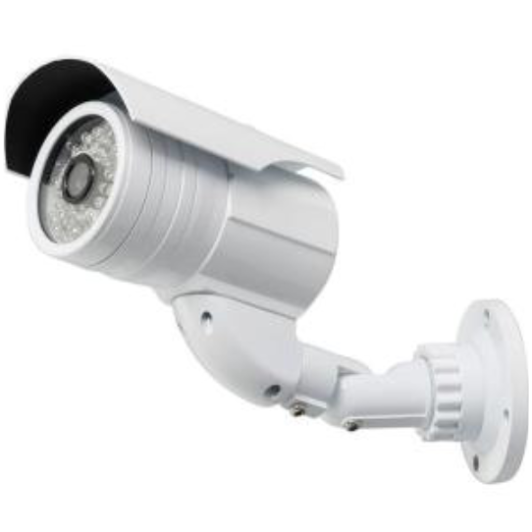

KB267BW -
650 TVL SONY/ 700 TVL SONY/ 800TVL no sony/ 1/3 SONY SUPER HAD CCD 4-
Weatherproof IR Camera
SONY/SHARP Color CCD 650, 700,800TVL
IR LED:¢5X36PCS
IR Distance:50M
2.8-
External lens adjusting
3 Axis Bracket

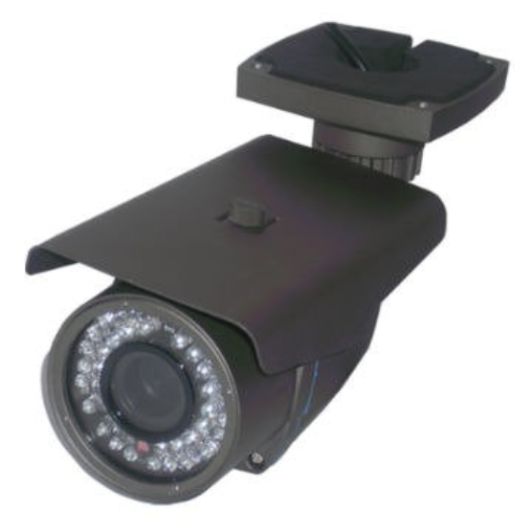

KB400DG -
1/3 SONY SUPER HAD CCD 4-
IR Waterproof Camera
Sony CCD 700TVL
BLC/AWB Function
IR LED:¢5X42PCS IR LE
IR Distance:40m
4-
3-
Wall and Ceil Installing.
Water Resistant Rate:IP66

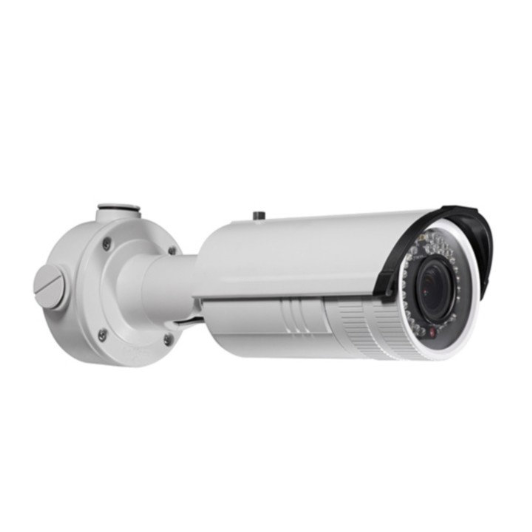

DS-
1.3MP Low-
• 1/3’’ progressive scan CMOS
• Up to 1280 × 1024 resolution
• HD 720P video(up to 60fps)
• Smart Codec
• Smart IR
• Smart Focus: Motorized VF lens(-
• Smart VQD
• Smart Face Detection
• Smart Audio Detection(-
• Intrusion Detection
• 3D DNR, DWDR
• Defog, EIS, BLC, HLC
• built-
